Industry-leading technology in capacity for extension.

• First company in China to develop 4 section 7.5m fixed telescopic conveyor with 16m extension
•


• First company in China to develop 4 section 6m fixed telescopic conveyor with 16m extension
•


• First company in China to develop 5 section 7.5m fixed telescopic conveyor with 21m extension

Product instructions:

Through joystick or buttons, the telescopic belt conveyor can reach any position needed by the operator. The goods can be efficiently and easily be loaded and unloaded through arbitrary streching move. The extending or retracting movement was feedback for the operator through electric fast response, and the users can choose our products model according to the length of the truck, they also can contact our sales team, and get a reasonable proposal from us.

In addtion, on our website, we can offer guide of standard solution. if you have any questions, please tell us your requirement, we will proposal safe and economic solutions.

Features：

1. The telescopic belt conveyor is new type professional equipment for loading and unloading.

2. The telescopic belt conveyor can be freely expanded on the length direction. The operator adjusts the button according to the needs of loading. The length of the telescopic belt conveyor in the truck can be controlled automatically, so as to reduce the distance between the manual and the handling material, and the time of loading and unloading is shortened.

3. The use of telescopic belt conveyor reduced the rate of damage and broke down, and ensured the safety of the product out of storage.

4. Suitable type of goods: cartons, woven bags, bags, luggage, tires, plastic boxes/barrel.

5. Rated loading: ≤80 kgs.

Telescopic belt conveyor of 5 sections. ( Needs to be placed on the loading and unloading platform)

Product Model:

Unit: millimeter (mm)

The above specifications are the common used ones in our company. If you need other specifications, please contact our sales.

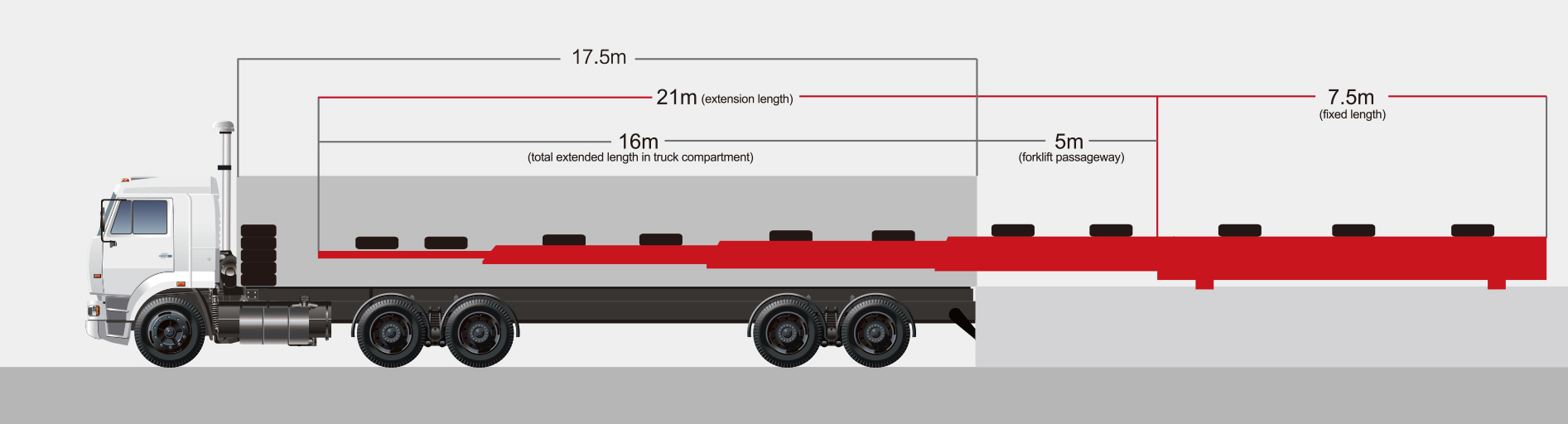

GC T5-6/16 conveyor is suitable for less than or equal to 17.5 meters trucks but limited space. GC T5-7.5/21 would be best for heavy-cargo logistics handling.
